Design of Solar PV DC Power System with Battery Backup Using Maximum Pow...

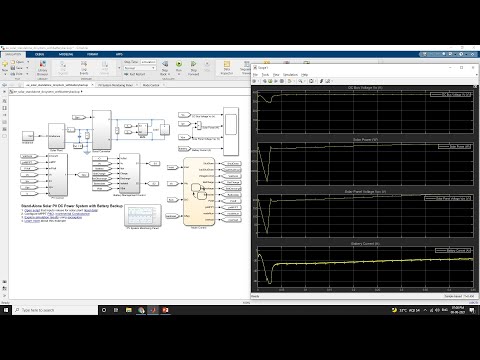

Stand-alone PV system in this example comprises seven operating modes. These modes are selected based on DC bus voltage, solar irradiance and state of charge of the battery. DC bus voltage level, solar irradiance and the battery state of charge are used to decide the suitable operating mode. Mode-0 - Start mode (Default simulation starting mode) Mode-1 - PV in output voltage control, battery fully charged and isolated Mode-2 - PV in maximum power point, battery is charging Mode-3 - PV in maximum power point, battery is discharging Mode-4 - Night mode, PV shutdown, battery is discharging Mode-5 - Total system shutdown Mode-6 - PV in maximum power point, battery is charging, load is disconnected A MATLAB® live script to design the overall standalone PV system. Simulink® to design/simulate the control logic for the system. Simscape™ to simulate the power circuit. Stateflow™ to implement the supervisory control logic. To track the maximum power point (MPP) of solar PV, We can choose between two maximum power point tracking (MPPT) techniques: INCREMENTAL CONDUCTANCE (IC) PERTURBATION AND OBSERVATION( P&O) Click here to download the simulink Model: https://drive.google.com/file/d/1vp0e... Kindly Subscribe My YouTube Channel... Please like, share and comments on My Videos 🙏 Please click the below links to Subscribe/Join & View my Videos https: //www.youtube.com/c/DrMSivakumar Telegram : t.me/Dr_MSivakumar website : drmsivakumar78.blogspot.com
