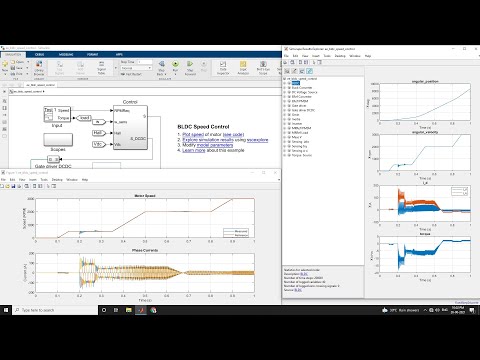

Design & Simulation of Speed Control of Brushless DC Motor using MATLAB ...

Click here to download the Simulink File;

https://drive.google.com/file/d/1wnlCjZI9pCrz9Kr2FBe1XsfQ9fo8gQs1/view?usp=sharing

BLDC motor control design using Simulink® lets you use multirate simulation to design, tune, and verify control algorithms and detect and correct errors across the complete operating range of the motor before hardware testing.

Using simulation with Simulink, you can reduce the amount of prototype testing and verify the robustness of control algorithms to fault conditions that are not practical to test on hardware.

You can:

• Model BLDC motor with a trapezoidal or arbitrary back EMF Model current controllers, speed controllers, and modulators
• Model inverter power electronics
• Tune BLDC motor control system gains using linear control design techniques such as Bode plot and root locus and techniques such as automated PID tuning Model startup, shutdown, and error modes and design derating and protection logic to ensure safe operation
• Design signal conditioning and processing algorithms for the I/O channels
• Run closed-loop simulations of the motor and controller to test system performance under normal and abnormal operating scenarios
• Automatically generate ANSI, ISO, or processor-optimized C code and HDL for rapid prototyping, hardware-in-the-loop testing, and production implementation
